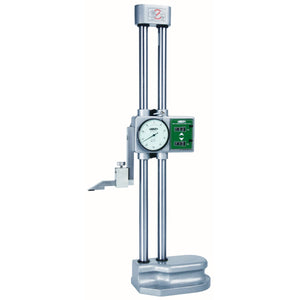

Dial Height Gages

Product Description

Description

  • Dial indicator graduation: 0.01mm
  • One counter reads in the plus direction and another in the minus direction, so incremental measurement can be in either direction
  • Carbide tipped scriber
  • Made of stainless steel (except the base)
  • With driving wheel

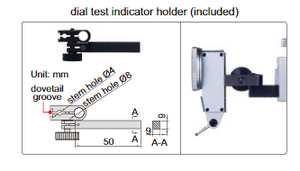

  • With dial test indicator holder
  • Supplied with dust cover

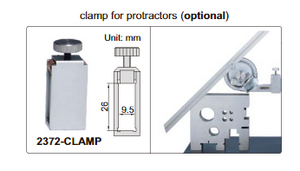

  • Optional accessory: clamp for protractors (code 2372-CLAMP)

Units for the table is mm unless specified:

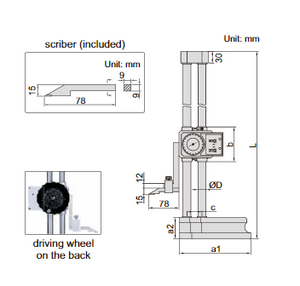

 Code Range L a1 a2 b c ∅D

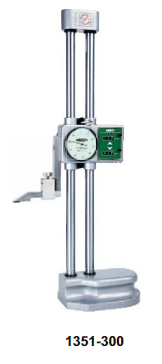

1351-300 0-300mm 475 135 43 84 33 15
1351-450 0-450mm 660 180 54 88 38 20
1351-600 0-600mm 810 180 54 88 38 20
